The Allegheny RS-96S Model - Coal Heating Stoves

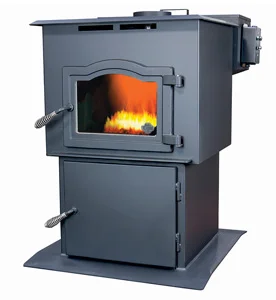

The Allegheny



The Allegheny is a contemporary fully automatic and thermostatically controlled stoker stove. The patented Tri-Burner stoker system is easy to use, reliable and constructed to exacting standards. This high quality stove with its internal plenum heat is ideal for heating a country cottage, your home or business. Enjoy the cozy comfort of our steady burn coal stove. Wake each morning to the pleasing warmth of the Allegheny.




Features

  • Large Multi-Day Ash Pan and Coal Hopper
  • Fully Automatic Thermostat
  • Simple, Reliable, and Sturdy Design
  • Wide View Door
  • 4/1 Warranty
    (4 Year Body/1 Year Electrical)

Options

  • *Top Blower Port
  • 265 CFM Fan
  • Direct Vent
  • Top or Bottom Venting
  • 150 Pound Mult-Day Coal Hopper

* 6" or 8" Round - 6 X 12 Rectangular


Specifications

BTU Range: 85,000
Sq. Ft. Heat Capacity:1800-2500 sq. ft.
Fuel: Anthracite Rice or Buck Coal
Blower Size: 455 CFM Standard
Flue Size: 6"
Weight: 275 lbs.

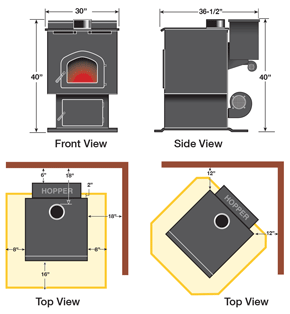

Height: 40" (including stack)
Width: 30"
Depth: 36-1/2"



Clearance To Combustibles

Rear To Hopper: 6"
Side: 18"
Front: 16"
Pipe To Wall: 18"
